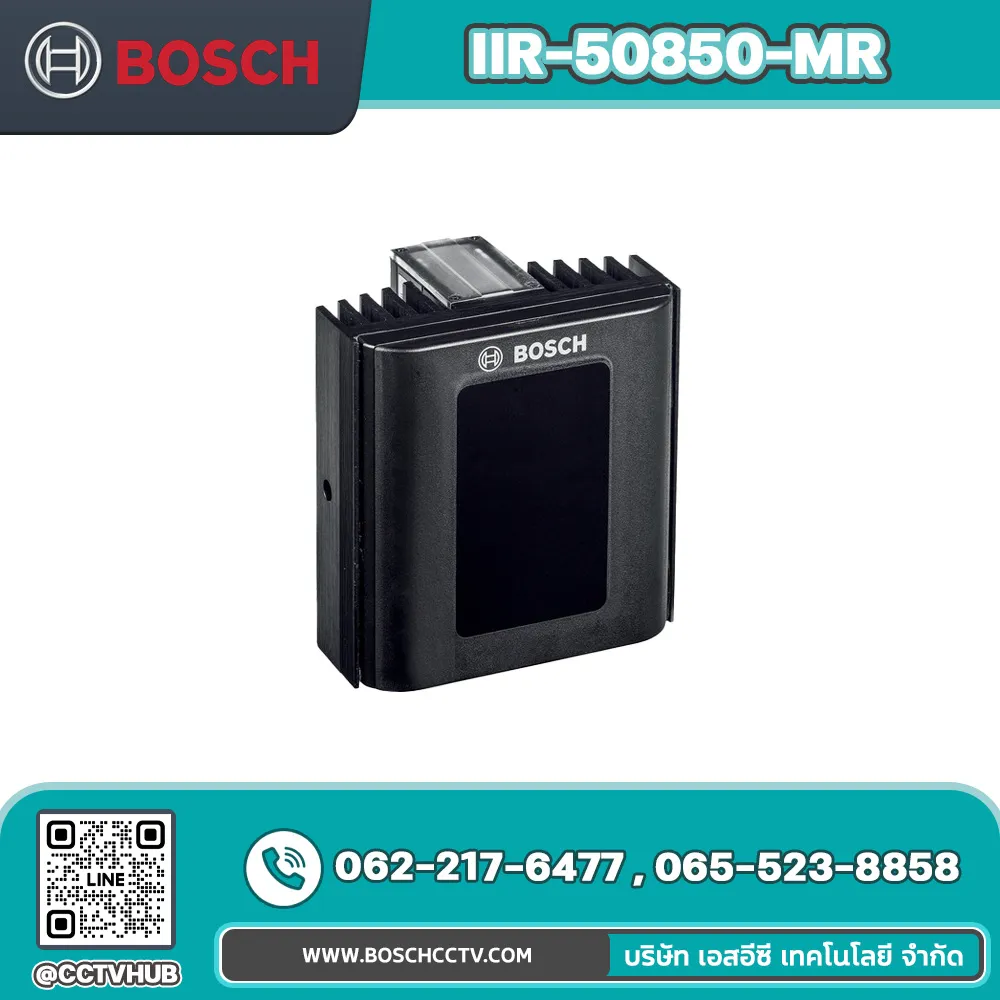

IIR-50850-MR IR Illuminator 850nm medium range

Bosch 5000 Series Overview



The 5000 Series Medium Range IR Illuminator from Bosch provides semi-covert lighting for medium range indoor and outdoor surveillance applications. The set of interchangeable diffuser lenses allows you to select beam patterns that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. It is specifically designed for energy efficient operation. The illuminator can be powered directly from a 12 to 32 VDC or 24 VAC supply.

The energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management and long life. A pressure equalization valve prevents thermal expansion and pressure cycling.



Integrated adjustable photocell
Adjustable IR intensity
Interchangeable beam pattern diffusers to match beam to camera
Telemetry input and photocell output for external switching
Self-cleaning lens coating

Bosch 5000 Series Specs

Wavelength 850 nm
IR Control Adjustable IR intensity (10% to 100%)
Day/Night Switching Photocell, sensitivity adjustable (20 lux to 70 lux)
Beam Angle 10°
Distance: 722' (220 m)
HFOV: 126' (38 m)

20°
Distance: 492' (150 m)
HFOV: 174' (53 m)

30°
Distance: 361' (110 m)
HFOV: 193' (59 m)

60°
Distance: 230' (70 m)
HFOV: 265' (81 m)

80°
Distance: 164' (50 m)
HFOV: 275' (84 m)

95°
Distance: 115' (35 m)
HFOV: 251' (76 m)
Housing Robust anodized aluminum extrusion, black
Front Window Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
Mount Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
Power Supply 12 to 32 VDC or 24 VAC ±10%
Power Consumption 26 W
Certifications & Approvals CE-EMC: EN 61547 (Lighting Immunity), EN 55015 (Lighting Emission) EN 62493 (Lighting EMF), EN 50130-4 (Alarm EMC)
USA cULus: UL 2108 Low Voltage Lighting Systems
Safety CE-LVD: EN-60598-1 (Luminaires General), EN-60598-2-1 (Luminaires)
LED: EN 62471 Risk group 2 (LED safety)
Environmental IEC / EN 60529 IP66, IEC / EN 62262 IK09, EN50130-5 Class IV (Alarm environmental), EN 50581 RoHS,
Operating Temperature Range -58 to 122°F (-50 to 50°C)
Protection IP66
Cable 9' (3 m)
Dimensions Unit: 4.33 x 4.53 x 2.9" (110 x 115 x 76 mm)
Bracket: 4.33 x 4.92 x 1.38" (110 x 125 x 35 mm)
Weight Unit: 2.3 lb (1.06 kg)
Bracket: 0.44 lb (0.2 kg)
