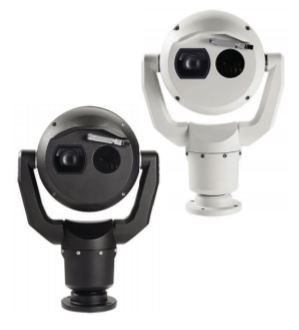

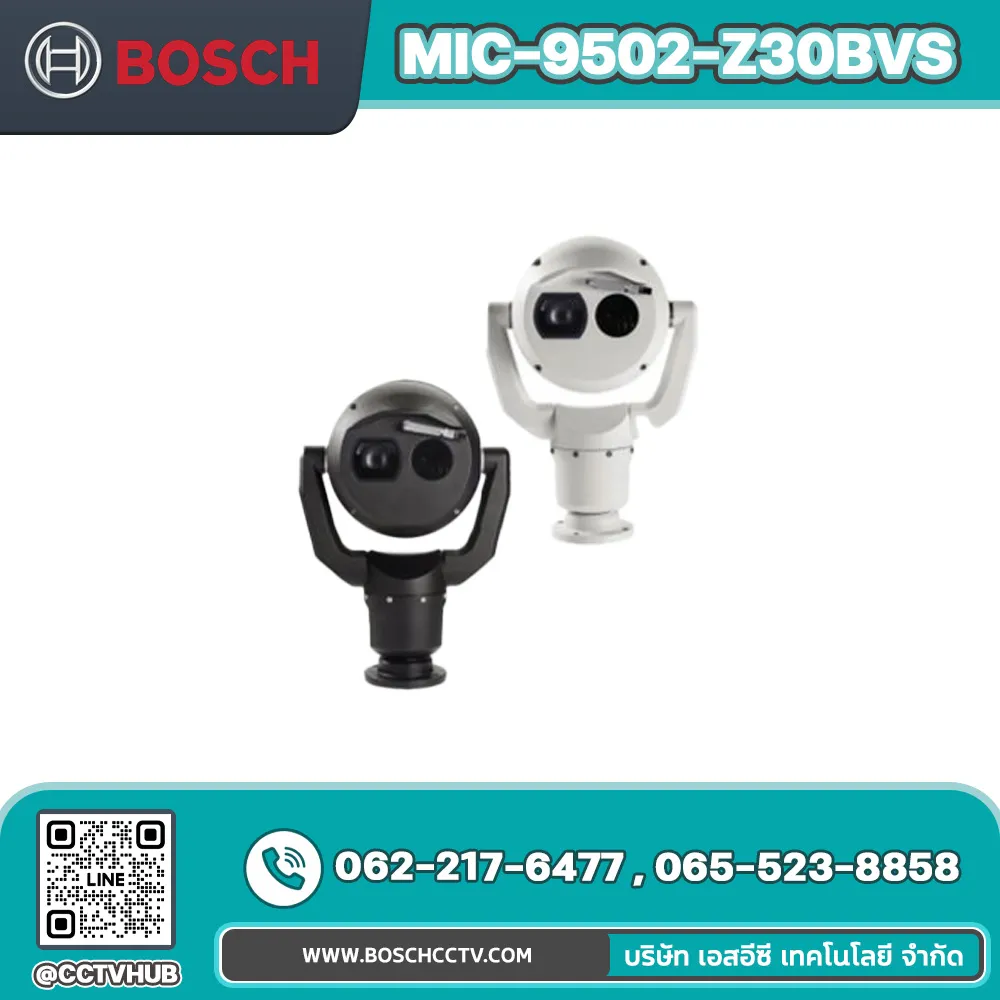

MIC-9502-Z30BVS MIC IP fusion 9000i 2MP Outdoor Dual Thermal Network PTZ Camera
Bosch MIC IP Fusion 9000i Overview
The black MIC IP fusion 9000i 2MP Outdoor Dual Thermal VGA/Visible Network PTZ Camerafrom Bosch consists of thermal and visible camera cores for capturing both types of video, helping you to detect potential security threats in virtually all conditions. The thermal imager features an FPA (Focal Plane Array), uncooled vanadium oxide microbolometer and 50mm athermal fixed lens for capturing videos at a maximum resolution of 640 x 480. The visible imager features a 1/2.8" Exmor R CMOS sensor and 4.3-129mm varifocal lens for capturing videos at a maximum resolution of 1920 x 1080.
Enclosed in an IP66- and IK10-rated housing, the camera can be used in both indoor and outdoor environments. The camera features a silicone wiper to remove moisture from both the glass and germanium windows. In addition, both windows incorporate embedded defrosters that minimize buildup of snow and ice to ensure clear images are captured in extreme cold and moist conditions. The wiper can also be integrated with third-party washer systems for regular cleaning and maintenance. The camera can be powered using a standard 24 VAC power source and/or via network-compliant 95W high PoE (switch available separately).
Features
MIC IP PTZ Thermal 9000i HD1080p60, 30x Zoom Lens 4.3-129 mm., VGA 640x480 9fps, 50mm Lens., IVA, IP68&IK10 protection, Black Colour.
Specification
Bosch MIC IP Fusion 9000i Specs
| Imager |
Focal Plane Array (FPA), uncooled vanadium oxide microbolometer |
| Effective Picture Elements |
640 x 480 |
| Pixel Pitch |
17 μm |
| Frame Rate |
<9 Hz |
| Lens |
Athermal 50mm (f/1.2) |
| Field of View |
12.4 x 9.3° |
| Spectral Response |
8 to 14 μm |
| Thermal Sensitivity |
<72mK at room temperature with noise reduction on |
| Focus |
Factory-set at infinity |
| Focus Distance |
276' to infinity (84 m to infinity) |
| Contrast Enhancement |
On/Off |
| Gain Level |
User adjustable |
| Brightness Level (cd/m) |
User adjustable |
| Noise Reduction |
On/Off |
| Color Modes |
Selectable Thermal Color Modes: 12 |
| Imager |
1/2.8" Exmor R CMOS sensor |
| Effective Picture Elements |
1945 x 1097 (2.13 MP) |
| Resolution |
1920 x 1080 |
| Lens |
30x motorized zoom
4.3-129mm
f/1.6-4.7 |
| Field of View |
63.7 to 2.3° |
| Focus |
Automatic with manual override |
| Iris |
Automatic with manual override |
| Digital Zoom |
12x |
| Sensitivity |
3100K, reflectivity 89%, 1/30, f/1.6, 30 IRE
Color: 0.0077 lux
Monochrome: 0.0008 lux |
| Gain Control |
AGC, fixed |
| Aperture Correction |
Horizontal and vertical |
| Electronic Shutter Speed |
1/10,000 to 1 sec (22 steps) |
| Signal-to-Noise Ratio |
>55 dB |
| Day/Night Switching |
Automatic IR cut filter |
| White Balance |
2000 to 10,000K
ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp |
| Day/Night |
Monochrome, Color, Auto |
| Defog |
Intelligent Defog: Improves visibility when viewing foggy or other low-contrast scenes |
| High Dynamic Range |
120 dB (25/30 fps) |
| Type |
Intelligent Video Analytics |
| Covered Configurations |
Off / Global VCA / Profiles 1 to 16 |
| Video Compression |
H.265, H.264 (ISO/IEC 14496), MJPEG, JPEG |
| Streaming |
Multiple and independent streams using H.264 or H.265, plus MJPEG, JPEG
Configurable frame rate and bandwidth |
| Streams |
SD
720p
1080p
D1 4:3 (cropped)
640 x 480
1280 x 1024 (cropped) |
| Resolution (H x V) |
1080p HD: 1920 x 1080
720p HD: 1280 x 720
432p SD: 768 x 432
288p SD: 512 x 288
144p SD: 256 x 144 |
| Protocols |
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Ethernet |
10Base-T/100Base-TX, auto-sensing, half/full duplex |
| Encryption |
TLS 1.0, SSL, DES, 3DES, AES |
| Ethernet Connector |
RJ45 |
| GOP Structure |
IP, IBP, IBBP |
| Data Rate |
H.265, 1080P: 61 kb/s to 2.8 Mb/s (depending on the scene, the frame rate, and the quality settings)
H.264: 9.6 kb/s to 6 Mb/s |
| Overall IP Delay |
30 fps: 120 ms
60 fps: 67 ms |
| Connectivity |
ONVIF Profile S, ONVIF Profile G, Auto-MDIX |
| Quality of Service (QoS) |
User-selectable options |
| Setup |
Via Internet Explorer 7.0 or later, Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Video Security Client (VSC), or support for third-party software |
| Protocols |
Supported Serial Protocols: Bosch OSRD, Pelco D/P, Forward Vision, Cohu
Requires separate eLicense installation |
| Services |
Cloud-based
Time-based or alarm-based JPEG posting to four different accounts
Accounts can address FTP servers or cloud-based storage facilities
Alarm events can be set up to trigger an email or SMS notification |
| Firmware Updates |
Completed over network using built-in web browser or from Bosch Configuration Manager |
| Control Interfaces |
RS-485, simplex, half and full duplex, user-selectable baud rate or auto-baud |
| Power |
Network
Ethernet High PoE (95 W)
RJ45 10/100Base-Tx, male connector
Female-to-female RJ45 coupler included
Pigtail: 24 VAC (nominal) |
| Ground Contact |
Chassis Ground: Ground wire with connector lug |
| Compression |
G.711, AAC, and L16 (live and recording) |
| Signal-to-Noise Ratio (SNR) |
Audio-in: 47 dBA (A-weighting)
Audio Out: 50 dBA (A-weighting) |
| Mode |
Two-way, full duplex audio communication |
| User Connections |
Line in: 15 kOhms typical, 1 Vrms, max
Line out: 0.8 Vrms at 12 kOhms, typical |
| Drive Unit |
Brushless, integral pan/tilt motor drive |
| Mounting Orientation |
Upright
Inverted |
| Pan Range |
360° continuous rotation |
| Tilt Angle |
292° |
| Tilt Range |
-56 to +90° |
| Pan Speed |
0.2 to 120°/s |
| Tilt Speed |
Variable: 0.2 to 90°/s |
| Tracking Speed |
4 to 120°/s |
| Pre-Position Speed |
Maximum 120°/s |
| Accuracy |
Preposition: 0.05° (typical) |
| Proportional Pan / Tilt to Zoom |
Yes |
| Audible Noise |
<65 dB |
| Input Voltage |
21 to 30 VAC, 50/60 Hz, and/or High Power over Ethernet 56 VDC nominal |
| Current Consumption |
4 A (24 VAC)
1.5 A (High PoE) |
| Power Consumption |
72 W (24 VAC), 72 W (High PoE) typical with heater, defroster, and fan |
| PoE |
High PoE
95 W High Power over Ethernet (Requires NPD-9501A midspan from Bosch / sold separately) |
| Redundancy |
Connect both High PoE Midspan and a separate 24 VAC power source
If either the High PoE or 24 VAC power source fails, the camera seamlessly transitions over to use the remaining power source |
| Surge Protection |
Built-in surge protection for power, data, and network interfaces |
| Authentication |
Video Authentication: Off/Watermark/MD5/SHA-1/SHA-256
802.1x Network Authentication with EAP/TLS: Supports TLS 1.2 with updated cipher suites including AES 256-bit encryption |
| Stamp |
Display Stamping: Name, Time, Pre-position title, Sector title, Compass/telemetry, Lens zoom factor, Alarm message, Custom Logo bitmap |
| Pixel Counter |
Selectable area |
| Indicator |
Live Image Indicator: On/Off |
| Recording Capacity |
16 GB of internal EMMC-based memory |
| Password Protection |
Three-level |
| Security |
HTTPS |
| Firmware Updates |
Protected with authenticated secure uploads |
| TPM |
Supported |
| Infrastructure Support |
Public Key Infrastructure |
| SSL Certificate Support |
Supported for use with HTTPS |
| AES Encryption |
Supports independent encryption with 128-bit keys |
| Sectors/Titling |
4, 8, 12, or 16 user-selectable, independent sectors, each with 20 characters per Title |
| Privacy Masking |
32, individually configurable
Maximum 8 per Preposition
Programmable with 3, 4 or 5 corners (Black, White, or Gray)
24 individually configurable virtual masks |
| Pre-positions |
256, each with 20 characters per Title |
| Guard Tours |
Custom Recorded Tours: 2, Total Duration: 30 minutes
1 Pre-position tour consisting of up to 256 scenes consecutively and 1 customized with up to 256 user-defined scenes |
| Supported Languages |
English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Japanese, Chinese |
| Alarm Control |
Rules-based logic supports basic and complex predefined user-specified commands |
| Monitoring |
Integrated sensors monitor operational status such as internal temperature, humidity level, incoming voltage level, vibration, and shock events |
| Ingress Protection |
IP68 / Type 6P (dust and immersion) when installed on a MIC-DCA or on a MIC wall mount
IP67 (moisture and dust) rating on connectors in the base of the camera when using the IP67 Connector Kit (MIC-9KIP67-5PK), which is also required when using non-Bosch mounts
IP66 (directed spray) when installed on a MIC-DCA or on a MIC wall mount |
| Vandal Resistance |
IK10 (excluding windows) |
| Operating Temperature |
-40 to +149°F (-40 to 65°C)
NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile: -30 to 165°F (-34 to +74°C) |
| Storage Temperature |
-40 to +158°F (-40 to 70°C) |
| Humidity |
0 to 100% |
| Wind Loading |
100 mph / 160 km/h sustained
150 mph / 241 km/h gusts |
| Effective Projected Area (EPA) |
Camera: 0.98 ft² / 0.0910 m²
Camera and Sunshield: 1 ft² (0.0929 m²) |
| Vibration |
IEC 60068-2-6, Test Fc: Vibration (sinusoidal), 10 m/s² (1 g) |
| Shock |
IEC 60068-2-27, Test Ea
Shock: 45 g, 6 ms
Half sine impulse |
| Window |
Borosilicate glass (optical)
Germanium (thermal) |
| Construction Material |
Cast solid aluminum |
| Window Wiper |
Integrated, long-life silicone wiper |
| Fan & Heater |
Integrated |
| Defroster |
Embedded in optical and thermal windows, with de-icing capability |
| Surface Finish |
Chromate-based surface treatment with powder coat paint, sand finish |
| Dimensions (W x H x D) |
11.74 x 16.58 x 7.14" (421 x 298 x 181 mm) |
| Weight |
19.7 lb (9 kg) |
|
