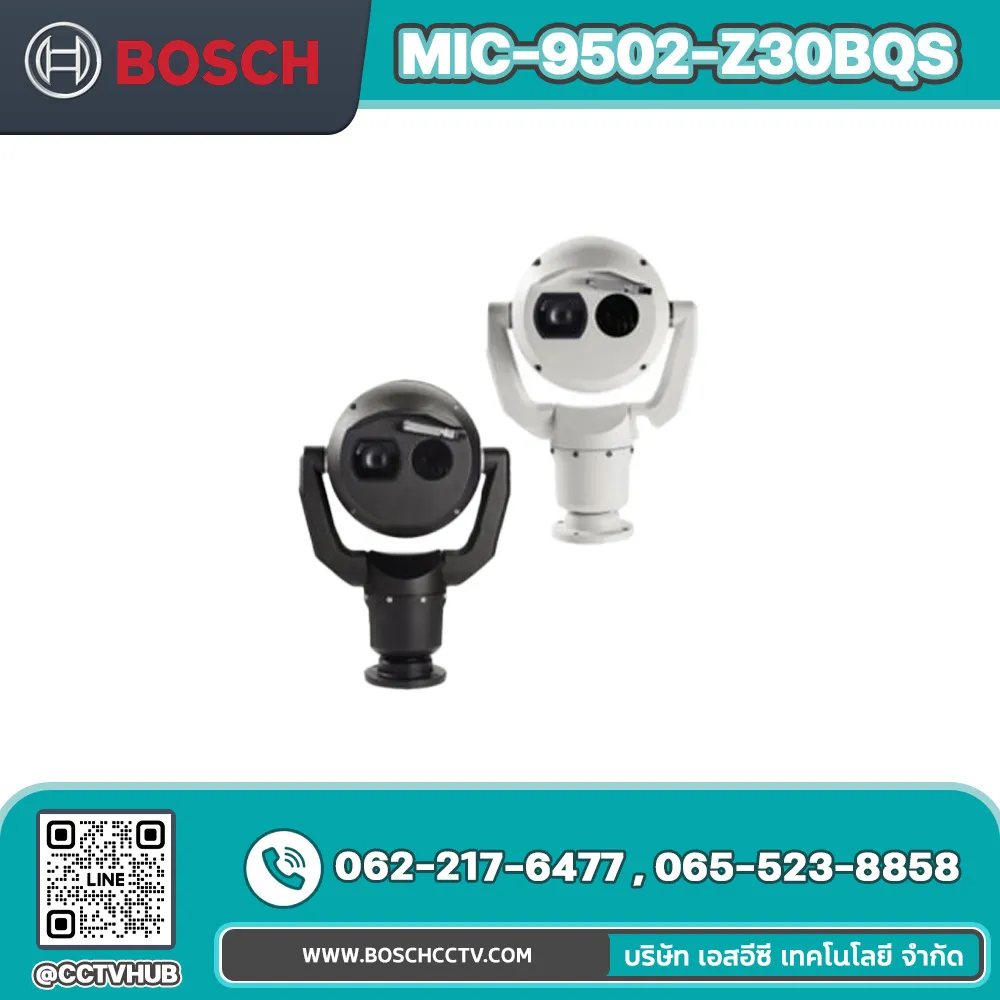

MIC-9502-Z30BQS MIC IP PTZ Thermal 9000i HD1080p60
 Features
MIC IP PTZ Thermal 9000i HD1080p60, 30x Zoom Lens 4.3-129 mm., QVGA 320x240 9fps, 19mm Lens., IVA, IP68&IK10 protection, Black Colour
Specification
Bosch MIC IP Fusion 9000i Specs
| Imager |
Focal Plane Array (FPA), uncooled vanadium oxide microbolometer |
| Effective Picture Elements |
320 x 240 |
| Pixel Pitch |
17 μm |
| Frame Rate |
<9 Hz |
| Lens |
Athermal 19mm (f/1.1) |
| Field of View |
16 x 12° |
| Spectral Response |
8 to 14 μm |
| Thermal Sensitivity |
<62mK at room temperature with noise reduction on |
| Focus |
Factory-set at infinity |
| Focus Distance |
46' to infinity (14 to infinity) |
| Contrast Enhancement |
On/Off |
| Gain Level |
User adjustable |
| Brightness Level (cd/m) |
User adjustable |
| Noise Reduction |
On/Off |
| Color Modes |
Selectable Thermal Color Modes: 12 |
| Imager |
1/2.8" Exmor R CMOS sensor |
| Effective Picture Elements |
1945 x 1097 (2.13 MP) |
| Resolution |
1920 x 1080 |
| Lens |
30x motorized zoom
4.3-129mm
f/1.6-4.7 |
| Field of View |
63.7 to 2.3° |
| Focus |
Automatic with manual override |
| Iris |
Automatic with manual override |
| Digital Zoom |
12x |
| Sensitivity |
3100K, reflectivity 89%, 1/30, f/1.6, 30 IRE
Color: 0.0077 lux
Monochrome: 0.0008 lux |
| Gain Control |
AGC, fixed |
| Aperture Correction |
Horizontal and vertical |
| Electronic Shutter Speed |
1/10,000 to 1 sec (22 steps) |
| Signal-to-Noise Ratio |
>55 dB |
| Day/Night Switching |
Automatic IR cut filter |
| White Balance |
2000 to 10,000K
ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp |
| Day/Night |
Monochrome, Color, Auto |
| Defog |
Intelligent Defog: Improves visibility when viewing foggy or other low-contrast scenes |
| High Dynamic Range |
120 dB (25/30 fps) |
| Type |
Intelligent Video Analytics |
| Covered Configurations |
Off / Global VCA / Profiles 1 to 16 |
| Video Compression |
H.265, H.264 (ISO/IEC 14496), MJPEG, JPEG |
| Streaming |
Multiple and independent streams using H.264 or H.265, plus MJPEG
Configurable frame rate and bandwidth |
| Streams |
SD
720p
1080p
D1 4:3 (cropped)
640 x 480
1280 x 1024 (cropped) |
| Resolution (H x V) |
1080p HD: 1920 x 1080
720p HD: 1280 x 720
432p SD: 768 x 432
288p SD: 512 x 288
144p SD: 256 x 144 |
| Protocols |
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Ethernet |
10Base-T/100Base-TX, auto-sensing, half/full duplex |
| Encryption |
TLS 1.0, SSL, DES, 3DES, AES |
| Ethernet Connector |
RJ45 |
| GOP Structure |
IP, IBP, IBBP |
| Data Rate |
H.265, 1080P: 61 kb/s to 2.8 Mb/s (depending on the scene, the frame rate, and the quality settings)
H.264: 9.6 kb/s to 6 M/ps |
| Overall IP Delay |
30 fps: 120 ms
60 fps: 67 ms |
| Connectivity |
ONVIF Profile S, ONVIF Profile G, Auto-MDIX |
| Quality of Service (QoS) |
User-selectable options |
| Setup |
Via Internet Explorer 7.0 or later, Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Video Security Client (VSC), or support for third party software |
| Protocols |
Supported Serial Protocols: Bosch OSRD, Pelco D/P, Forward Vision, Cohu
Requires separate eLicense installation |
| Services |
Cloud-based
Time-based or alarm-based JPEG posting to four different accounts
Accounts can address FTP servers or cloud-based storage facilities
Alarm events can be set up to trigger an email or SMS notification |
| Firmware Updates |
Completed over network using built-in web browser or from Bosch Configuration Manager |
| Control Interfaces |
RS-485, simplex, half and full duplex, user-selectable baud rate or auto-baud |
| Power |
Network
Ethernet High PoE (95 W)
RJ45 10/100Base-Tx, male connector
Female-to-female RJ45 coupler included
Pigtail: 24 VAC (nominal) |
| Ground Contact |
Chassis Ground: Ground wire with connector lug |
| Compression |
G.711, AAC, and L16 (live and recording) |
| Signal-to-Noise Ratio (SNR) |
Audio-in: 47 dBA (A-weighting)
Audio Out: 50 dBA (A-weighting) |
| Mode |
Two-way, full duplex audio communication |
| User Connections |
Line in: 15 kOhms typical, 1 Vrms, max
Line out: 0.8 Vrms at 12 kOhms, typical |
| Drive Unit |
Brushless, integral pan/tilt motor drive |
| Mounting Orientation |
Upright
Inverted |
| Pan Range |
360° continuous rotation |
| Tilt Angle |
292° |
| Tilt Range |
-56 to 90° |
| Pan Speed |
0.2 to 120°/s |
| Tilt Speed |
Variable: 0.2 to 90°/s |
| Tracking Speed |
4 to 120°/s |
| Pre-Position Speed |
Maximum 120°/s with no more than 2.5 sec to reach new position (excluding time to zoom and focus at new position) |
| Accuracy |
Preposition: 0.05° (typical) |
| Proportional Pan / Tilt to Zoom |
Yes |
| Audible Noise |
<65 dB |
| Input Voltage |
21 to 30 VAC, 50/60 Hz, and/or High Power over Ethernet 56 VDC nominal |
| Current Consumption |
4 A (24 VAC)
1.5 A (High PoE) |
| Power Consumption |
72 W (24 VAC), 72 W (High PoE) typical with heater, defroster, and fan |
| PoE |
High PoE
95 W High Power over Ethernet (Requires NPD-9501A midspan from Bosch / sold separately) |
| Redundancy |
Connect both High PoE Midspan and a separate 24 VAC power source
If either the High PoE or 24 VAC power source fails, the camera seamlessly transitions over to use the remaining power source |
| Surge Protection |
Built-in surge protection for power, data, and network interfaces |
| Authentication |
Video Authentication: Off / Watermark / MD5 / SHA-1 / SHA-256
802.1x Network Authentication with EAP/TLS: Supports TLS 1.2 with updated cipher suites including AES 256-bit encryption |
| Stamp |
Display Stamping: Name, Time, Pre-position title, Sector title, Compass/telemetry, Lens zoom factor, Alarm message, Custom Logo bitmap |
| Pixel Counter |
Selectable area |
| Indicator |
Live Image Indicator: On/Off |
| Recording Capacity |
16 GB of internal EMMC-based memory |
| Password Protection |
Three-level |
| Security |
HTTPS |
| Firmware Updates |
Protected with authenticated secure uploads |
| TPM |
Supported |
| Infrastructure Support |
Public Key Infrastructure |
| SSL Certificate Support |
Supported for use with HTTPS |
| AES Encryption |
Supports independent encryption with 128-bit keys |
| Sectors/Titling |
4, 8, 12, or 16 user-selectable, independent sectors, each with 20 characters per Title |
| Privacy Masking |
32, individually configurable
Maximum 8 per Preposition
Programmable with 3, 4 or 5 corners (Black, White, or Gray)
24 individually configurable virtual masks |
| Pre-positions |
256, each with 20 characters per Title |
| Guard Tours |
Custom Recorded Tours: 2, Total Duration: 30 minutes
1 Pre-position tour consisting of up to 256 scenes consecutively and 1 customized with up to 256 user-defined scenes |
| Supported Languages |
English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Japanese, Chinese |
| Alarm Control |
Rules-based logic supports basic and complex predefined user-specified commands |
| Monitoring |
Integrated sensors monitor operational status such as internal temperature, humidity level, incoming voltage level, vibration, and shock events |
| Ingress Protection |
IP68 / Type 6P (dust and immersion) when installed on a MIC-DCA or on a MIC wall mount
IP67 (moisture and dust) rating on connectors in the base of the camera when using the IP67 Connector Kit (MIC-9KIP67-5PK), which is also required when using non-Bosch mounts
IP66 (directed spray) when installed on a MIC-DCA or on a MIC wall mount |
| Vandal Resistance |
IK10 (excluding windows) |
| Operating Temperature |
-40 to 149°F (-40 to 65°C)
NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile: -30 to 165°F (-34 to 74°C) |
| Storage Temperature |
-40 to 158°F (-40 to 70°C) |
| Humidity |
0 to 100% |
| Wind Loading |
100 mph / 160 km/h sustained
150 mph / 241 km/h gusts |
| Effective Projected Area (EPA) |
Camera: 0.98 ft² / 0.0910 m²
Camera and Sunshield: 1 ft² (0.0929 m²) |
| Vibration |
IEC 60068-2-6, Test Fc: Vibration (sinusoidal), 10 m/s² (1 g) |
| Shock |
IEC 60068-2-27, Test Ea
Shock: 45 g, 6 ms
Half sine impulse |
| Window |
Borosilicate glass (optical)
Germanium (thermal) |
| Construction Material |
Cast solid aluminum |
| Window Wiper |
Integrated, long-life silicone wiper |
| Fan & Heater |
Integrated |
| Defroster |
Embedded in optical and thermal windows, with de-icing capability |
| Surface Finish |
Chromate-based surface treatment with powder coat paint, sand finish |
| Dimensions (W x H x D) |
11.74 x 16.58 x 7.14" / 421 x 298 x 181 mm |
| Weight |
19.7 lb / 9 kg |
|
